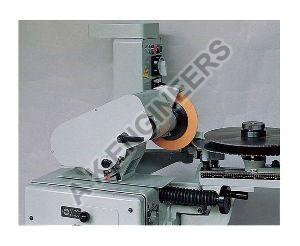

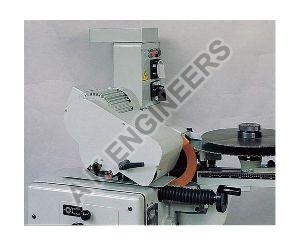

Circular Saw Blade Sharpening Machine

3.50 Lac - 7.50 Lac / Piece

1 Piece (MOQ)

Business Type Supplier
Saw Blade Diameter Ø50 ~ Ø450 mm
Pitch Range Max. 25 mm
Depth of Teeth Max. 8 mm
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Range of Cutting Angle
-5 ° ~ 30 °
Feeding Speed
45 ~ 180 Teeth/minute
Thickness of Saw Blade
Max. 8 mm
Grinding Wheel Diameter
Ø75 ~ Ø150 mm
Wheel Inner Diameter
Ø25 mm
Grinding Wheel Speed
4200 RPM
Grinding Wheel Motor
0.55 Kw 2p
Driving Motor
0.37 Kw 2p / 4p
Dust Suction Motor
0.37 Kw 2p (optional Acc.)
Net Weight
130 Kgs
Gross Weight of Packing
180 Kgs
Packing Size (w X H X D)
970 X 1460 X 870 mm
Brand Name
JET Machines

Features:

  • Mechanism : All cast-iron components are made from DUCTILE IRON (FCD-45), wear resisting to assure precission.
  • Tooth Profile: Simply shift between Straight tooth (A type) and Curved tooth (B type).
  • Speed: Driving speed change by a stepless adjusting device, regard to change speed for different blade pitch promptly.
  • Saw Blade: During saw blade install, the blade thickness setting is quick and accurate according an indicating meter.
  • High-Low Tooth: Alternate high/low teeth shall be accomplished by one pass. The teeth height difference is variable and read out from indicating meter, thus you got a perfect sharpening result.
  • Chamfer: Teeth chamfering is easily made without need to replace grinding wheel, only swings upward or downward to aim the indication plate.
